QUARTZ FILTERS and QCM

Our Quartz filters includes standard 10.70MHz, 21.40MHz, 45MHz fundamental and third overtone designs, also six and eight pole block filters with the option of matching transformers. They provide high Q resonant source together with a low mass and small size. Available for applications with channel spacing requirements.

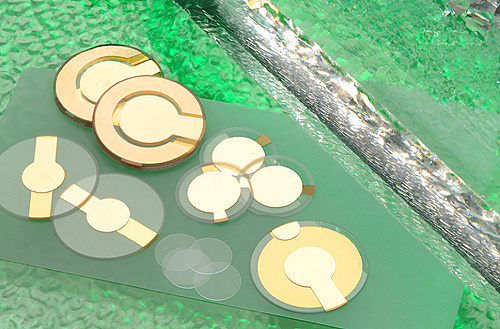

Our Quartz crystal microbalance with a range of standard designs and also manufactured to custom specifications. Circular-blank material with parallel faces and either flat, beveled, plano or double contoured profiles; and frequencies ranging between 1MHz ~ 60MHz,

Applications include Biomedical Sensors, Metal Deposition Monitors, Environmental Monitoring and Chemical Reaction Monitors.

Quartz filters
TYPE	BASIC SPECIFICATION	FREQUENCY	DATA	IMAGE

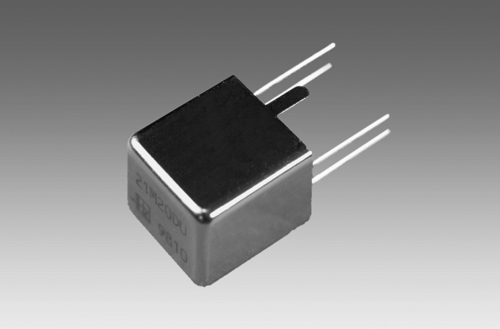

21.40MHz block MCF	(36.4 x 18.2)mm, Height M106: 15.9mm (25 x 14)mm, Height M110: 10mm (15 x 12)mm, Height M104: 15mm (18.5 x 12)mm, Height M105: 15mm (11 x 12)mm, Height M107: 15mm (11 x 12)mm, Height M111: 15mm 21.40MHz quartz filters, packaged units	21.40MHz

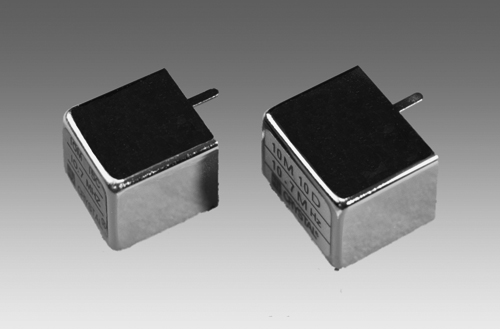

10.70MHz MCF	(11.05 x 4.7)mm, Height HC49: 13.46mm (9.5 x 3.5)mm, Height UM2: 9.6mm (15 x 12)mm, Height M104: 15mm (18.5 x 13.4)mm, Height M105: 15mm 10.70MHz mcf, discrete and packaged units 2, 4, 6 and 8 pole designs good selectivity, low terminating impedance	10.70MHz
SSB and 16.90MHz MCF	(11.05 x 4.7)mm, Height HC49: 13.46mm (7.9 X 3.2)mm, Height UM1: 8.1mm (23 x 12)mm, Height M103: 15mm (15 x 12)mm, Height M104: 15mm (18.5 x 12)mm, Height M105: 15mm SSB filters, 16.90MHz discrete and packaged units 2, 4, 6 and 8 pole designs	SSB and 16.90MHz
21.40MHz MCF	(11.05 x 4.7)mm, Height HC49: 13.46mm (7.9 x 3.2)mm, Height UM1: 8.1mm (7.9 x 3.2)mm, Height UM5: 6mm 21.40MHz quartz filters discrete standard packages 2 and 4 pole designs, good selectivity	21.40MHz
overtone series MCF	(11.05 x 4.7)mm, Height HC49: 13.46mm (7.9 x 3.2)mm, Height UM1: 8.1mm overtone mcf filters discrete and standard packages 2 and 4 pole designs good selectivity	(45 ~ 70)MHz

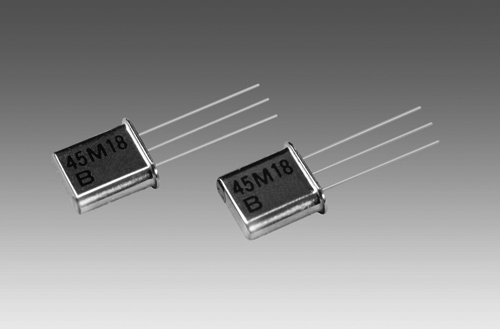

45MHz fundamental MCF	(7.9 x 3.2)mm, Height UM1: 8.1mm (11 x 8.5)mm, Height M107: 11.5mm 45MHz fundamental quartz filters discrete and packaged units 2, 4 and 6 pole designs good selectivity ,low terminating impedance	45.00MHz
FC smd CRYSTAL FILTERS	(7.0 x 5.0)mm, Height 1mm miniature ceramic smd quartz filters 2 and 4 poles	(21.40 ~ 90.0)MHz
QCM
TYPE	BASIC SPECIFICATION	FREQUENCY	DATA	IMAGE
WCrAu0101	Frequency : 1.0MHz Diameter: 25.40mm Plating: Cr/AU Wrapped around: Yes	1.0MHz
WCrAu0502	Frequency : 5.0MHz Diameter: 14.00mm Plating: Cr/AU Wrapped around: No	5.0MHz
WCrAu0501	Frequency : 5.0MHz Diameter: 14.00mm Plating: Cr/AU Wrapped around: No	5.0MHz
WTiAuTi1014	Frequency : 10.0MHz Diameter: 14.00mm Plating: Ti/Au/Ti Wrapped around: No	10.0MHz
